Description
DESCRIPTION
DESCRIPTION

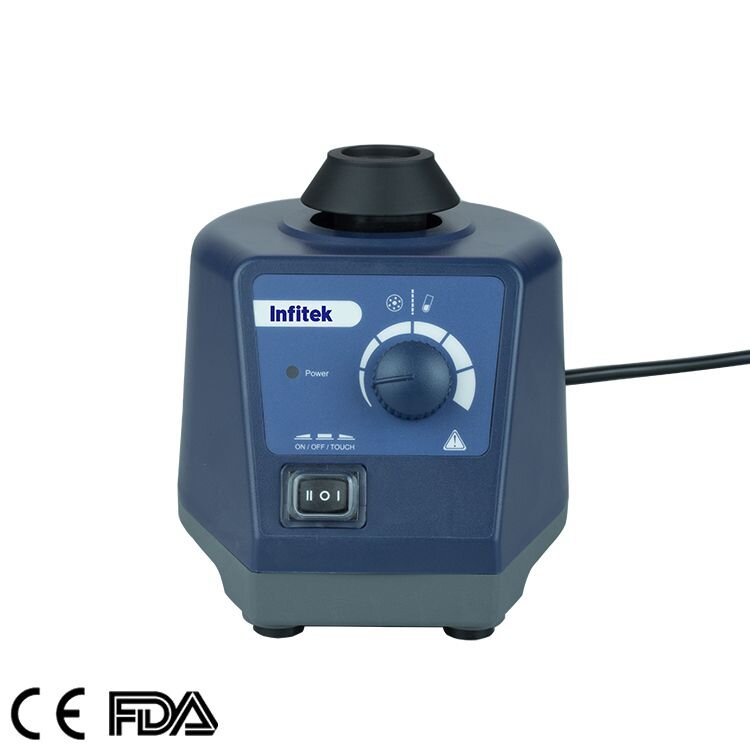

Vortex Mixer
The Vortex Mixers are ideal instruments for mixing liquid components in tubes, resuspension of cells, using an eccentric mechanism. They are widely used in biological and chemical analysis applications.
VMX-S Vortex Mixer Features:
1.Touch operation or continuous mode
2.Variable speed control from 0 to 3000rpm
3.Used for various mixing applications with optional adapters
4. Specially designed vacuum suction feet for body stablility
5.Robust aluminum-cast construction
SPECIFICATIONS
SPECIFICATIONS
| Model | VMX-S (Adjustable speed) |
| Voltage | 110-120V/220-230V,50/60Hz |
| Power | 60W |
| Mixing motion | Orbital |
| Orbital diameter | 4mm |
| Motor type | Shaded pole motor |
| Motor rating input | 58W |
| Motor rating output | 10W |
| Speed range | 0-3000rpm |
| Speed display | Scale |
| Run type | Touch operation |
| Dimension[W×H×D] | 127×130×160mm |
| Weight | 3.5kg |
| Permissible ambient temperature | 5-40℃ |
| Permissible relative humidity | 80%RH |
| Protection class | IP21 |
| Model | Use | Picture | Remarks |
| VT1.1 Standard top | For＜φ30mm tubes and small vessels |  |
Standard |
| VT1.2
Tube holding rod |
Used with tube adapters |  |
Optional |
| VT1.3
Universal top plate |
Φ100mm |  |
Optional |
| VT1.3.1
Tube adapter |
48×φ6mm（1ml） |  |
Optional |
| VT1.3.2
Tube adapter |
15×φ10mm（1.5-2ml） |  |
Optional |
| VT1.3.3
Tube adapter |
16×φ12mm（5ml） |  |
Optional |
| VT1.3.4
Tube adapter |
8×φ16mm（10ml） |  |
Optional |
| VT1.3.5
Tube adapter |
8×φ20mm（10-15ml） | |
Optional |
| VT1.3.6
Platform pad |
For＜φ99mm tubes and small vessel |  |
Optional |
| VT1.3.7
Vacuum chuck |
Made of rubber |  |
Optional |
Application of accessories：
| Accessories | VMX-S
（Adjustable speed, 0-3000rpm） |
|
| Touch mode
（High speed area） |
Continuous mode
（Low speed area） |
|
| VTI.1 | Y | Y |
| VTI.2 + VT1.3.1 | Y | |
| VTI.2 + VT1.3.2 | Y | |
| VTI.2 + VT1.3.3 | Y | |
| VTI.2 + VT1.3.4 | Y | |
| VTI.2 + VT1.3.5 | Y | |
| VTI.3 + VT1.3.6 | Y | |
| VTI.3 + VT1.3.1 | Y | |
| VTI.3 + VT1.3.2 | Y | |
| VTI.3 + VT1.3.3 | Y | |
| VTI.3 + VT1.3.4 | Y | |
| VTI.3 + VT1.3.5 | Y | |
