Светодиодный дисплей, дополнительный встроенный принтер. Объем камеры: 12 л, 16 л, 18 л, 23 л. Температура стерилизации: 134 ℃/121 ℃. 3 пульсирующих вакуума, вакуум до -900 кПа. Сильная вакуумная сушка, множественная функция тестирования.
| Тип | product |
Description

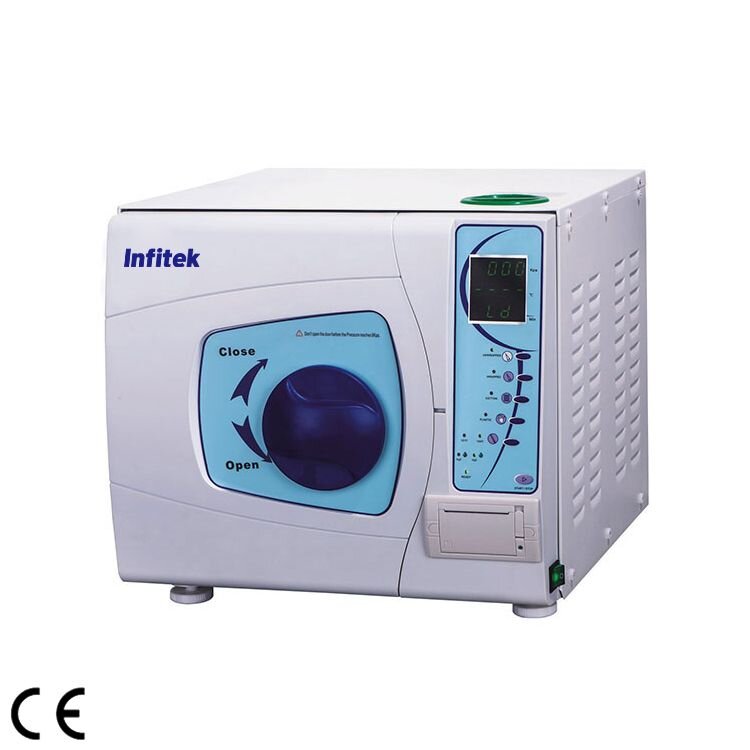

Dental Autoclave play a very important role in dental offices to avoid infection or transfer of microorganisms. It is suitable to sterilizing wrap, unwrap, solid, porous, hollow device. STB-B-2A Series dental autoclave is based on the new class B, have 3 pulsating vacuum, the vacuum is up to -0.9 bar (-0.09 MPa), residual humidity is <0.2%. Since the dental tools will be completely cleaned and removed of any microbial residue from previous dental procedures, the risk of any bacterial infection from the tools themselves will be greatly reduced.
- With imported & advanced 16-bit microprocessor, easy to operate. Suitable for the Dept of Stomatology, Ophthalmology, Surgery and Lab.
- Equipped with B&D test and vacuum test procedures. To test the penetrability.
- Chamber punched by stainless steel (#304, thickness: 2.5mm), together with the jet type of steam generator self-cleaning ensures the efficient sterilizing.
- With alarm system for waste water tank, it avoid the waste water entering into the sterilizing circulation and make the sterilization completely.
- Precise LED display and advanced self-test system ensure you get the working data freely.
- Double lock door system for safety during operation.
- Inbuilt printer and USB are optional. The disinfection process data and date can be automatically printed.
Specifications
Model classification
| Model | Power | Voltage | Frequency | Tank Capacity | Appearance Size (mm) | Inside Dimension (mm) | package Dimension (mm) | G·W |
| STB-B23-2A | 2000 W | AC220V/110V±10% | 50/60Hz±1Hz | 23Litres | 445×640×395 | Φ249×450 | 740×550×500 | 53 kg |
| STB-B18-2A | 1800 W | AC220V/110V±10% | 50/60Hz±1Hz | 18Litres | 445×550×395 | Φ249×355 | 670×550×500 | 48 kg |
| STB-B16-2A | 1800 W | AC220V/110V±10% | 50/60Hz±1Hz | 16Litres | 445×550×395 | Φ230×360 | 670×550×500 | 47 kg |
| STB-B12-2A | 1800 W | AC220V/110V±10% | 50/60Hz±1Hz | 12Litres | 445×550×395 | Φ200×360 | 670×550×500 | 46 kg |
Technical parameter
| Sterilization level | CLASS B (European Class B) |
| Sterilization temperature | 134℃/121℃ |
| Display accuracy | ±0.5℃ |
| Recording accuracy | ±0.5℃ |
| Sensor accuracy | 0.01℃ |
| Special sterilization | Kill active HV, HBV, BSE and spore |
| Drying program | Strong vacuum drying,the residual humidity<0.2% |
| Display | Widescreen LED display |
| Test | Bowie & Dick steam penetration test, Vacuum test, Helix spiral test |
| Safety | Safety valve, pressure lock, fault self-check |
| Sterilization record | Optional Inbuilt printer and USB to record the sterilization process and date |
| Water supply system | 3 L distiller water tank, 3 L waste water tank |
| Cleaning program | Automatic clean inside pipe and steam generator |
| Sterilization configuration | 5 layers, 3 trays (circular shape, more space in actual use) |
