Емкость: 20 л, 50 л, 70 л, 100 л, 200 л Диапазон температур: RT+10–250 ℃ Контрольное отверстие: опционально φ25, 50, 80 мм Защитное устройство: защита от утечки/сигнализация перегрева
| Тип | product |

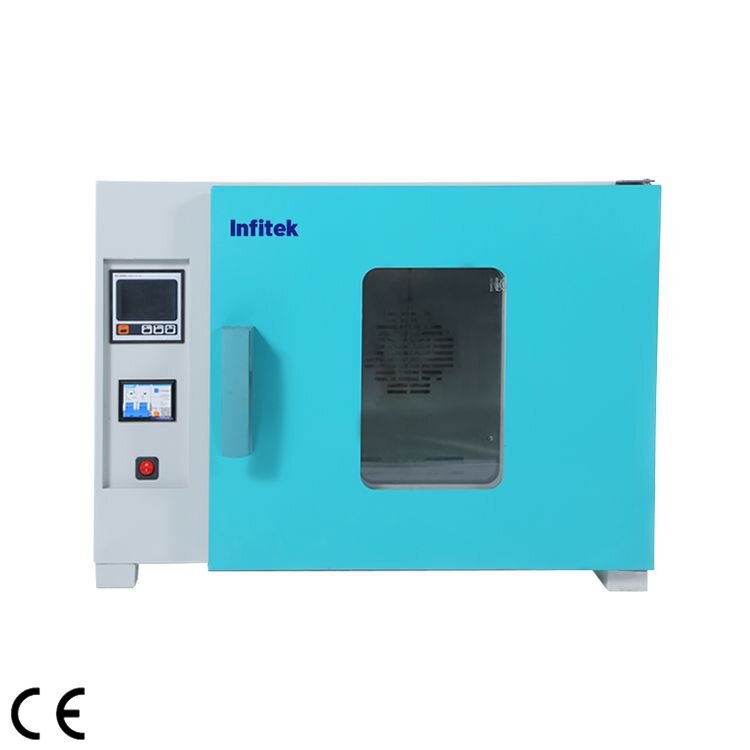

Sterilizing Oven DOF-HAS-A Series uses high-temperature dry heat to oxidize microorganisms, denature proteins, and cause poisoning due to electrolyte concentration. The main one is to destroy the cell protoplasm through oxidation, so that the microorganisms die, so all microorganisms can be killed within a certain heating time.
Energy saving
Intelligent LCD control
Internal circulation system
Dedicated sheet metal processing
Safety
| Model | DOF-HAS20A | DOF-HAS50A | DOF-HAS100A | DOF-HAS200A | |
| Capacity(L) | 20 | 50 | 100 | 200 | |
| Circulation | Forced air convection | ||||
| Dimension(W*D*H) | Internal (mm) | 300*300*270 | 420*350*350 | 550*350*520 | 600*550*570 |
| External (mm) | 590*470*440 | 710*520*520 | 840*540*730 | 890*730*770 | |
| Temperature | Range (℃) | RT+10-250 | |||
| Fluctuation (℃) | ±0.5 | ||||
| Resolution (℃) | 0.1 | ||||
| Uniformity (℃) | 25% | ||||
| Sensor | PT100 | ||||
| Controller | PID | ||||
| Display | LCD | ||||
| Timer(min) | 1-9999 | ||||
| Material | Internal | Stainless steel | |||
| External | Electro-galvanized steel with antimicrobial powder coating | ||||
| Shelves | 2 | ||||
| Test Hole (mm) | Optional φ25, 50, 80 | ||||
| Safety Device | Leakage protector / Over- temperature alarm | ||||
| Electricity | Voltage/Frequency(V/Hz) | 220/50 | |||
| Consumption (W) | 500 | 750 | 1500 | 2000 | |
| N. W./G.W. (kg) | 30/45 | 40/50 | 55/80 | 75/100 | |
| Shipping Dimension (W*D*H) (mm) | 710*600*550 | 810*640*600 | 950*680*880 | 1020*890*930 | |
| Optional | 1.Independent temperature limiting controller 2.Intelligent LCD procedure temperature controller(Optional USB,RS485/232 and printer) |
||||
