Нажмите на изображение для увеличения
Конечная температура конденсатора (℃): -55 или -80 Площадь сублимационной сушки (м2): 0,135-0,27 Емкость ледяного конденсатора (кг/24 часа): 6 Емкость загрузки материала (мл): 1350-2700 Система управления: микропроцессор, большой сенсорный экран
Варианты доставки:
Курьер ~2 дн.
Самовывоз ~3 дн.
Почта ~6 дн.
Description

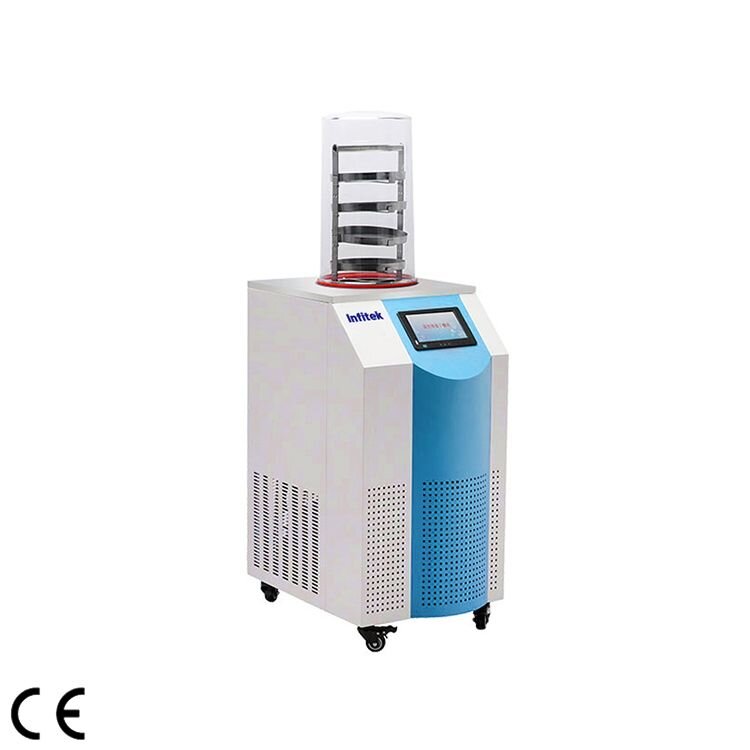

LYO60V-2S/LYO80V-2S LYO60V-2T/LYO80V-2T LYO60V-2P/LYO80V-2P LYO60V-2PT/LYO80V-2PT
Key Features:
- 7inches colorful touch panel can display the product sample’s temperature, Condenser temperature and vacuum etc in digital and curve.
- Touch panel with the design conforms to ergonomics and operate more comfortably.
- Compact design with a small footprint.
- With USB interface to export the data, convenient for user information management.
- Large-volume stainless steel condenserwithout coils, which can realize independent sample pre-freezing
Reliability：
- High performance compressor, cascade system,high cooling efficiency and fast cooling speed.
- Condenser and operation panel are made by stainless steel.
- Drying chamber is transparent which is visual and safe.
Applications：
- The lab series freeze dryer is suitable for freeze drying test of laboratory biomedical samples.
- Widely used in drugs, biological products, chemical and food industries.
- On the heat-sensitive substances such as antibiotics, vaccines, blood products, hormones and other biological tissue enzymes, freeze-drying technology is applied.
Optional:
- Optional for gas interface: it can inject inert gas.
- Optional for Condenserelectrical heating defrost function.
- Optional for rack heating which is help to test in production.
Parts
Specifications
| Model | LYO60V-2S | LYO60V-2P | LYO60V-2T | LYO60V-2PT | |
| LYO80V-2S | LYO80V-2P | LYO80V-2T | LYO80V-2PT | ||
|
Type |
Standard chamber | Standard chamber with 8 port manifold
|
Stoppering chamber
|
Stoppering
chamber with 8 port manifold |
|
| Freeze Drying Area(m2) | 0.18~0.27 | 0.18~0.27 | 0.135 | 0.135 | |
| Tray(Qty) | 4/6(Optional)pcs | 4/6(Optional)pcs | 3pcs | 3pcs | |
| Tray Dimensions(Diameter*H)(mm) | Φ240*20 | Φ200*20 | Φ200*20 | Φ200*20 | |
| Height Between Trays(mm) | 81/51 | 81/51 | 71(average) | 71(average) | |
| Condenser Temperature (℃) | -60/-80 | -60/-80 | -60/-80 | -60/-80 | |
| Condenser Capacity (L) | 28 | 28 | 28 | 28 | |
| Condenser Dimensions(Diameter*H)(mm) | Φ300*420 | Φ300*420 | Φ300*420 | Φ300*420 | |
| Vacuum Degree(no-loading) (Pa) | ≤5 | ≤5 | ≤5 | ≤5 | |
| Ice Condenser Capacity (kg/24h) | 6 | 6 | 6 | 6 | |
| Loading Capacity/ Shelf (mL) | 450 | 450 | 300 | 300 | |
| Total Loading Capacity(mL) | 1800~2700 | 1800~2700 | 1350 | 1350 | |
| Drying Chamber Dimensions(standard) | Circle:Φ300mm;Height:Φ450mm | ||||
| Total Qty. Of Vial Φ22 | 360 | 270 | 270 | 270 | |
| Total Qty. Of Vial Φ16 | 740 | 555 | 555 | 555 | |
| Total Qty. Of Vial Φ12 | 1320 | 990 | 990 | 990 | |
| Refrigerant | CFC-free | ||||
| Standard Accessories | Vacuum pump 4L/s,14.4m³/h,material tray,material rack,PC cover(for all modes)
Conical-mouth flask 500mL*8 pcs,switch valve*8 pcs(only for model 2P/PT) |
||||
| Optional Function&Accessories | Electric defrost function,nitrogen gas filling valve,oil mist filter(for all models)
800mL wide-mouth flask(only for model 2P/PT) |
||||
| Consumption | 1.2kW(-60℃)/1.7kW(-80℃) | ||||
| Electricity | AC220V/50Hz | ||||
| External Dimensions(W*D*H)(mm) | 560*710*940/1390 | 560*710*940/1450 | |||
| Shipping Dimensions(W*D*H) | Main body | 790*630*1180mm | |||
| Drying chamber | 410*410*640mm | ||||
| Vacuum pump | 220*580*370mm | ||||
| Gross Weight | 150kg(-60℃)/170kg(-80℃) | ||||
