MGS-1B MGS-1A
MGS-1B Features
- Digital speed control within the range of 0-1500rpm.
- stirring quantity of H2O at 3L.
- LED display shows speed.
- Nylon+GF housing provides a good performance ofchemical resistance.

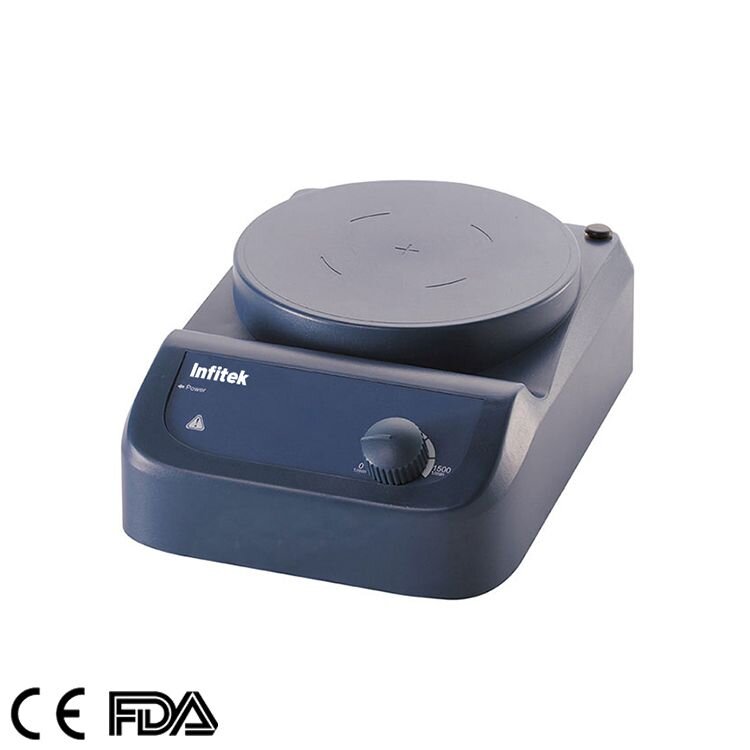

MGS-1A Features
- A wide range of 0-1500rpm.
- stirring quantity of H2O at 3L.
- Nylon+GF housing provides a goodperformance of chemical resistance.
SPECIFICATIONS
SPECIFICATIONS
| Specifications | MGS-1B | MGS-1A |
| Work plate dimension [W×H] | φ 135mm (5 inch) | φ 135mm (5 inch) |
| Work plate material | Nylon+GF | Nylon+GF |
| Motor type | Brushless DC motor | Brushless DC motor |
| Stirring positions | 1 | 1 |
| Max. stirring quantity [H2O] | 3L | 3L |
| Max. magnetic bar [length] | 50mm | 50mm |
| Speed range | 0-1500rpm | 0-1500rpm |
| Speed display | LED | Scale |
| Protection class | IP42 | IP42 |
| Motor input power | 5W | 5W |
| Motor output power | 3W | 3W |
| Power | 15W | 10W |
| Voltage | 100-120/200-240V, 50/60Hz | 100-120/200-240V, 50/60Hz |
| Dimension [W×D×H] | 150×260×80mm | 150×260×80mm |
| Weight | 1.8kg | 1.8kg |
| Permissible ambient temperature and humidity | 10-40℃, 80%RH | 10-40℃, 80%RH |
