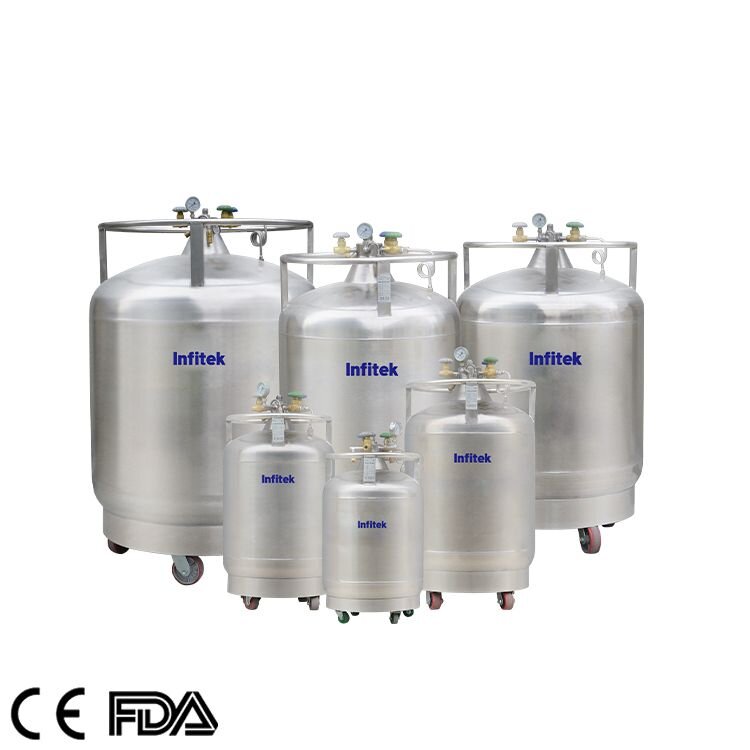

Контейнер для хранения жидкого азота серии LNS

Емкость LN2: 5–500 л. Отверстие горловины: 40 мм.

Под заказ
0 Br
Варианты доставки:
Курьер ~2 дн.
Самовывоз ~3 дн.
Почта ~6 дн.

Свыше 500 товаров

Большой выбор товаров в нашем магазине

Быстрая доставка

Быстрая доставка в любой регион страны

Поддержка клиента

Наши консультанты всегда рады Вам помочь

Description

DESCRIPTION

DESCRIPTION

Product Overview

Liquid nitrogen storage container, LNS Series is mainly used for liquid nitrogen storage. It uses small amount of liquid nitrogen vaporizing to increase the pressure inside the tank, so that the tank can automatically discharge liquid nitrogen to other containers. The stainless steel structure design is suitable for most environment and reduces the rate of evaporation losses. All the models are equipped with pressure building valve, liquid valve, release valve and pressure gauge. All the models are equipped with 4 rollers at the bottom for easy to move. This series liquid nitrogen storage container Mainly applicable to laboratory users and chemical users for liquid nitrogen storage and liquid nitrogen automatic supply.

Product Features

  1. Unique neck design, low evaporationloss rate;
  2. A protective operating ring;
  3. Safe structure;
  4. Stainless steel tank;
  5. With rollers for easy to move;
Liquid Nitrogen Filling Tank Level display
Liquid Nitrogen Filling Tank (2) Unique neck design, low evaporationloss rate

SPECIFICATIONS

SPECIFICATIONS

Model LNS-5 LNS-15 LNS-30 LNS-50
Performance
LN2 Capacity (L) 5 15 30 50
Neck Opening (mm) 40 40 40 40
Daily Evaporation Rate of Static Liquid Nitrogen (%) 3 2.5 2.5 2
Transfusion Volume (L/min)
Maximum Storage Capacity
Overall Height (mm) 510 750 879 991
Outer Diameter (mm) 329 404 454 506
Weight Empty (kg) 15 23 32 54
Standard Working Pressure (mPa) 0.05
Maximum Working Pressure (mPa) 0.09
Setting Pressure of The First Safety Valve (mPa) 0.099
Setting Pressure of The Second Safety Valve (mPa) 0.15
Pressure Gauge Indication Range (mPa) 0~0.25
Model LNS-100 LNS-150 LNS-200 LNS-240 LNS-300 LNS-500
Performance
LN2 Capacity (L) 100 150 200 240 300 500
Neck Opening (mm) 40 40 40 40 40 40
Daily Evaporation Rate of Static Liquid Nitrogen (%) 1.3 1.3 1.2 1.2 1.1 1.1
Transfusion Volume (L/min)
Maximum Storage Capacity
Overall Height (mm) 1185 1188 1265 1350 1459 1576
Outer Diameter (mm) 606 706 758 758 857 1008
Weight Empty (kg) 75 102 130 148 202 255
Standard Working Pressure (mPa) 0.05
Maximum Working Pressure (mPa) 0.09
Setting Pressure of The First Safety Valve (mPa) 0.099
Setting Pressure of The Second Safety Valve (mPa) 0.15
Pressure Gauge Indication Range (mPa) 0~0.25

Static evaporation rate and static holding time is the theoretical value. Actual evaporation rate and holding time will be affected by container usage, atmospheric conditions and manufacturing tolerances.

Series Configuration Guidelines

Conventional Series K Series
Standard: Single-layer infusion hose (ZG-DN\10/1.5)

Optional: Float level gauge

Standard: Single-layer infusion hose (ZG-DN10/1.5)

Digital display level meter and Voltage stabilizing device;

Suitable for automatic replenishment system.

From 100 to 500 liters, K series can be selected, of which  LNS-150 and LNS-240 has no conventional series.
